Dive Pitch Shifter : Reshaping tonal gravity with a Dragon’s breath.
Dive combines ultra-fast polyphonic pitch shifting, dual drop-tune presets, and expressive glide control in a compact performance-focused pedal. As a dual pitch shifting and A/B drop tune pedal built for down-tuning, it is designed to push your live performance into deeper dimensions.
Within this beast lies a 8ms low latency polyphonic tracking algorithm. It rigorously protects your tone and dynamics, preserving the raw acoustic texture of your instrument even when tracking cleanly across an extended pitch range of up to three octaves down. With "Tight" and "Sub" dual-algorithms, you can choose between high-end "wood and air" clarity or massive, synth-like sub-bass. The unique A/B pitch switching function then allow a single tap to toggle between dual drop settings, allowing for instant retuning without changing guitars.
Leave bulky expression pedals behind. The unique built-in Glide effect lets you precisely control the trajectory of attack/release pitch speed. Combined with flexible momentary/ latching switch logic, it unleashes a high-tension virtual whammy bar on fixed-bridge guitars. Whether for down-tuned chunk riffs or thunderous dive bomb simulator effects, Dive Pitch Shifter infuses your fingertips with the aggressive modern pitch effects through its expression-pedal-free dive bomb and glide effects.
Details

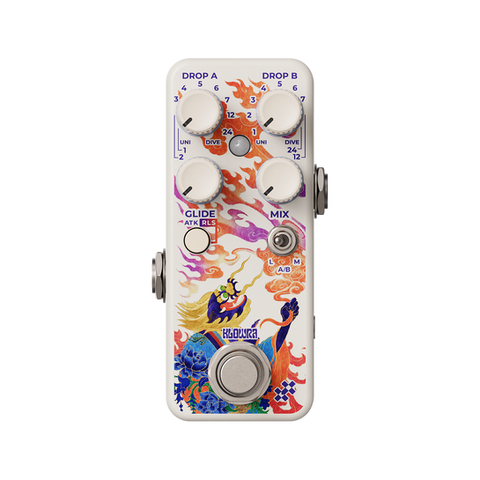

Select pitch interval for DROP A (White LED) / DROP B (Purple LED).
Note: When set to the Uni (Unison) position, turning the MIX knob to 12 o'clock yields a chorus-like detune effect.
Adjust the blend of dry and wet signals.
Adjust the attack time when engaging the effect, and the attack time for pitch switching.
Holding the button while rotating the GLIDE ATK knob to set the Glide Release time.
Adjust the release time when engaging the effect, and the release time for pitch switching. The LED flashes yellow rapidly to confirm the adjustment.

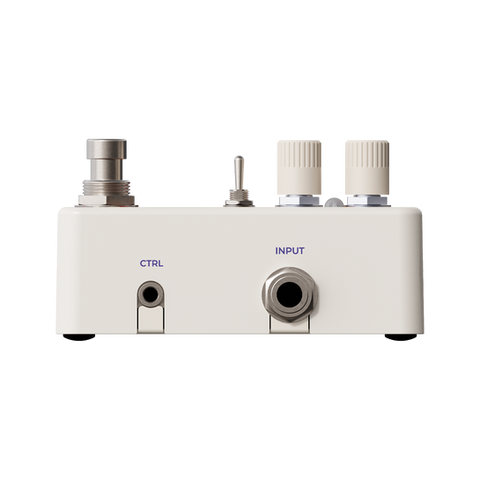

3.5mm TS input for connecting an external footswitch.
Note: This input recognizes momentary TS footswitch signals. The function of the external footswitch changes depending on the Toggle Switch position:
-
L (Latch Mode): Toggles between DROP A and DROP B.
-
A/B Mode: Turns the effect on or off (Bypass).
-
M (Momentary Mode): Momentarily toggles between DROP A and DROP B while the effect is active.
The toggle switch determines the transition between DROP A and DROP B, and defines the footswitch operation logic. (L- Latch Mode/ A/B - A/B Mode /M - Momentary Mode)
Precision Polyphonic Pitch Shifting & 8ms Ultra-Fast Tracking
As a premium pitch-shifting pedal, it pushes the limits of polyphonic tracking latency down to a mere 8ms. We’ve achieved a consistent 8ms latency for drop tuning up to -7 semitones (with dry signal at 4ms). From complex chords to rapid-fire solos, it defends your instrument’s original dynamics and touch at the moment of pitch conversion. For modern metal, this "real-time" feel is the difference between a tight riff and a disconnected performance. Eliminate digital lag and artifacts with clean tracking that reshapes a pure, transparent soundstage.
"Tight" & "Sub" Dual-Algorithms
Featuring two distinct processing modes tailored for different sonic foundations. Tight Mode (Guitar-centric) is specifically voiced to preserve the "wood and air" of your original tone, maintaining high-end definition and note separation without muddy low-mid build-up. Sub Mode (Bass-centric) provides a classic frequency response optimized for bass-heavy requirements or synth-like sub-octaves, ensuring pristine high-fidelity tone even in the deepest registers.
Seamless Dual Drop Tune Presets
Built for high-intensity live performance. The unique dual-channel drop-tune logic allows you to toggle between two deep pitch-shifted intervals with a single tap. Whether laying down heavy riffs or performing extreme tonal jumps within a song, it eliminates the need for changing guitars and grants absolute stage command.
Expansive Pitch Range & Flawless Wet/Dry Mix Control
Delivers a massive pitch-shifting territory, ranging from a single semitone down to a staggering 3 octaves deep. Beyond pure drop tuning, it supports the seamless layering of sub-octaves with your dry signal. With precise mix control, you can freely balance your natural tone with the detuned voice, constructing a massive, three-dimensional rhythmic space right beneath your strings.
.png)
Customizable Glide Trajectory
Break away from the rigid jumps of traditional pedals. Dedicated Glide Attack and Glide Release knobs allow you to sculpt the precise trajectory of your pitch falls and returns. From smooth, viscous glissandos to cliff-like weightless drops, every dynamic contour is yours to command via the integrated glide engine.
Momentary / Latching Trigger Modes
Perfectly adapts to multi-dimensional playing logic. Use A/B (momentary / latching) switch modes to handle global down-tuning or perform seamless jumps between two states. Switch to momentary mode to trigger high-tension, rhythmic pitch shifts or extreme pitch drops during phrases, injecting dramatic intensity into your live set.
.png)
.png)
Virtual Whammy Bar Experience
Liberate yourself from the physical limits of fixed bridges and bulky expression pedals. This engine pulls your notes with a single stomp to achieve dramatic pitch drops. It allows any guitar to easily release expressionless dive bomb & glide effects, reshaping your performance boundaries with pure downward energy through a virtual whammy bar.
-
Budding Bloom Series - Diverging from the sci-fi universe of the Bloom Infinity Series, the Budding Bloom Series centers on Asian mythological creatures and sacred artifacts, featuring whimsical, psychedelic landscapes hand-drawn by independent artists.
-
External Footswitch Ready - Supports connection to an external TS footswitch for versatile, continuous control capabilities over your effects.
-
WildSeed Engine - Powered by Klowra’s WildSeed Engine, featuring 32-bit floating-point DSP and 24-bit AD/DA conversion for high-headroom processing and studio-grade clarity.
-

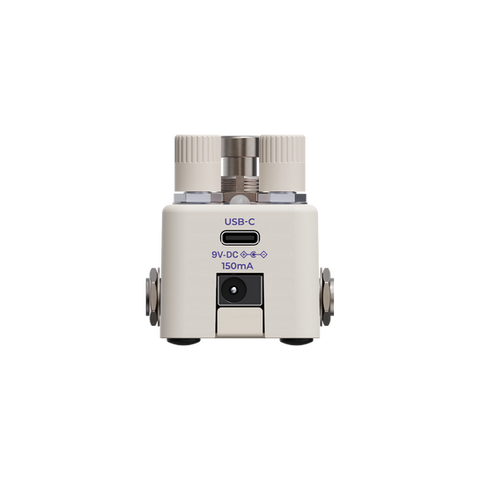

Evolving Firmware Ecosystem - Access continuous algorithm updates and new features via the USB-C firmware updates port, ensuring your Dive pitch shifter is continuously evolving alongside your creativity.
-
Selectable Bypass Modes - Freely switch between True/Buffered Bypass. Whether you demand the absolute purity of a straight-through signal or need a high-quality buffer to maintain signal strength across a long pedalboard chain, it guarantees a pristine signal path.
-
Ultra Compact, Road-Ready Design - Housed in an ultra compact form factor that saves precious pedalboard real estate, it never compromises on premium feel or durability. Built with high-grade components and rigorously hand-tested, it features clickless switching via a soft-touch relay, ensuring silent operation while remaining tour-grade reliable for the most demanding stages.
Specs
Pedal Type
Digital Pitch Shifter/Drop Tune Pedal
Effects
Polyphonic Pitch Shifter
Inputs
1 x 1/4" TS Instrument
Outputs
1 x 1/4" TS Instrument
Input Impedance
500k Ohm
Output Impedance
100 Ohm
External Control
TS Momentary footswitch
Bypass Mode
Switchable: True Bypass, Buffered Bypass
Power Source
9V DC power supply required
Current
150mA
Hardware Interface
USB-C
Sample rate
44.1K Hz
Sampling accuracy
24-bit AD/DA Conversion & 32-bit Floating-Point DSP
Package Contents
3.5mm TS (Male) to 1/4" TS (Female) Audio Adapter Cable, Exclusive Sticker, Quick Start, Safety Instructions,Product Catalog
Dimensions
51mm H x 92mm D x 38mm W
(2.0"H x 3.6"D x 1.5"W)
Package Size
59mm H x 140mm D x 140mm W
(2.3"H x5.5"D x 5.5"W)
Net Weight
234g/0.515lb
Package Weight
358g/0.788lb
